Paths less traveled
NeXTstation
A flat desktop workstation running NeXTSTEP.
MakerNeXT
Era1990s
TypeUnix workstation
About this object
The NeXTstation placed the computer beneath a separate display. Its operating environment combined a graphical interface with Unix facilities.
Inspect the original photograph
From the collection
This machine, in the collection

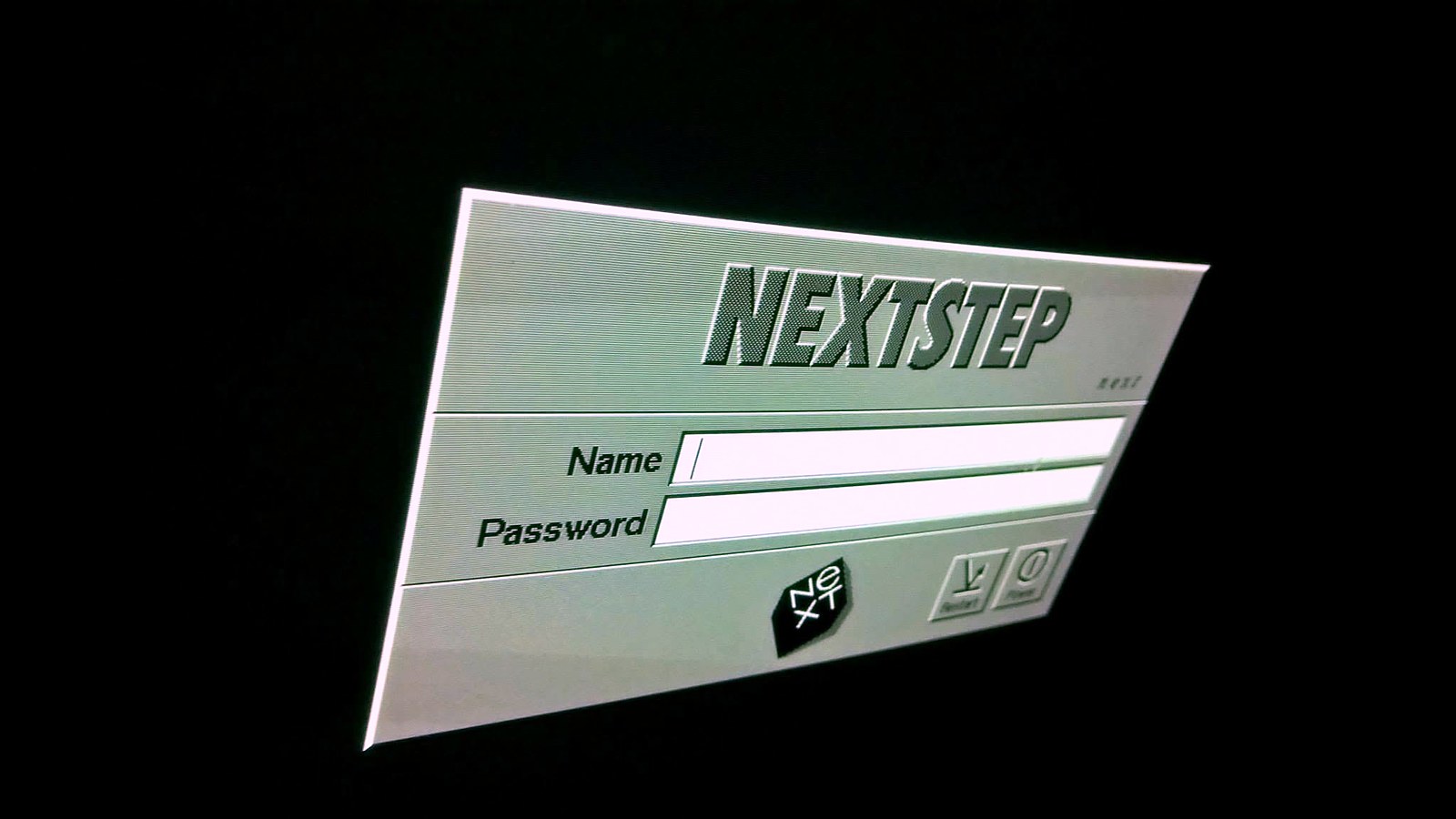

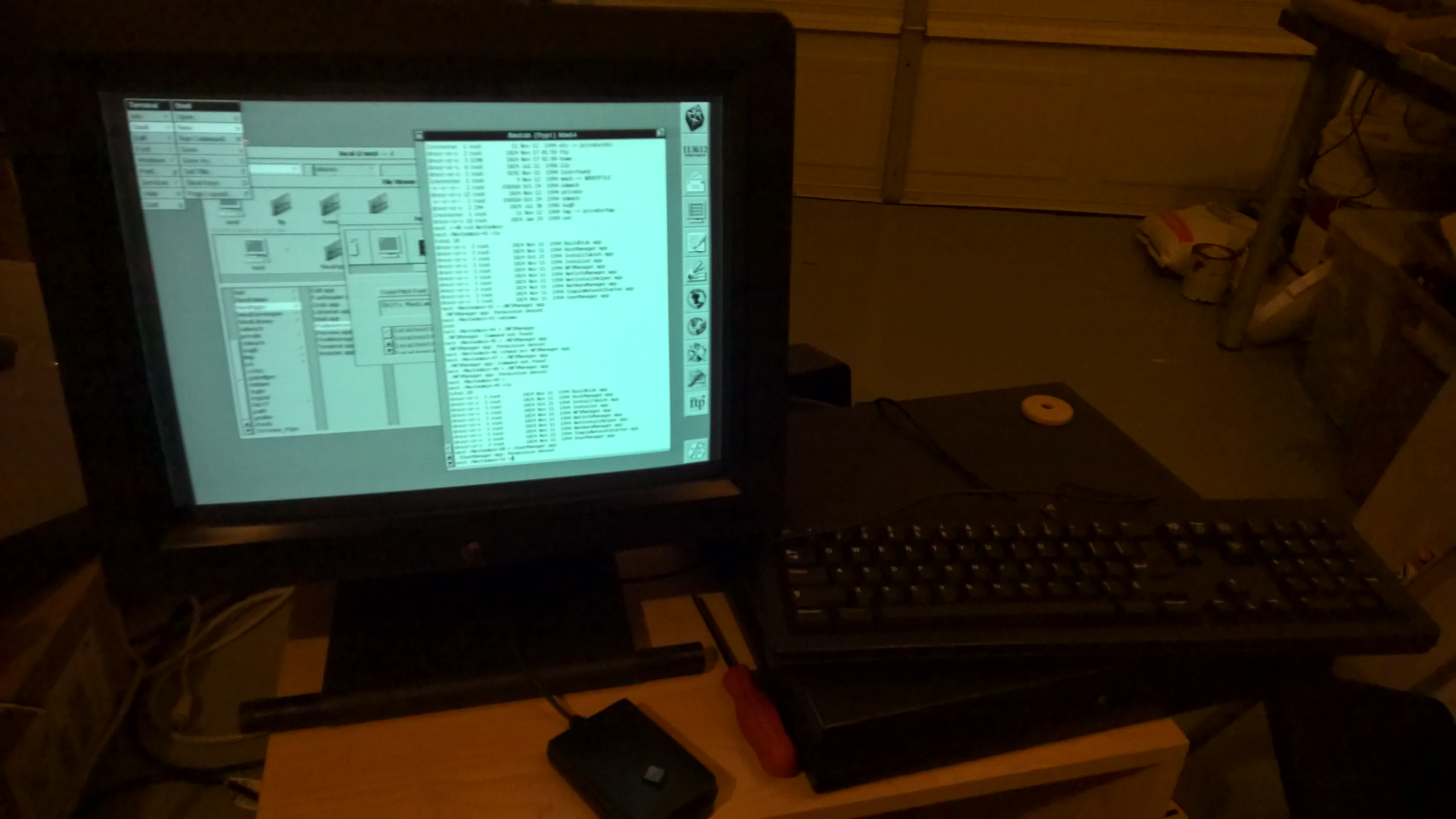

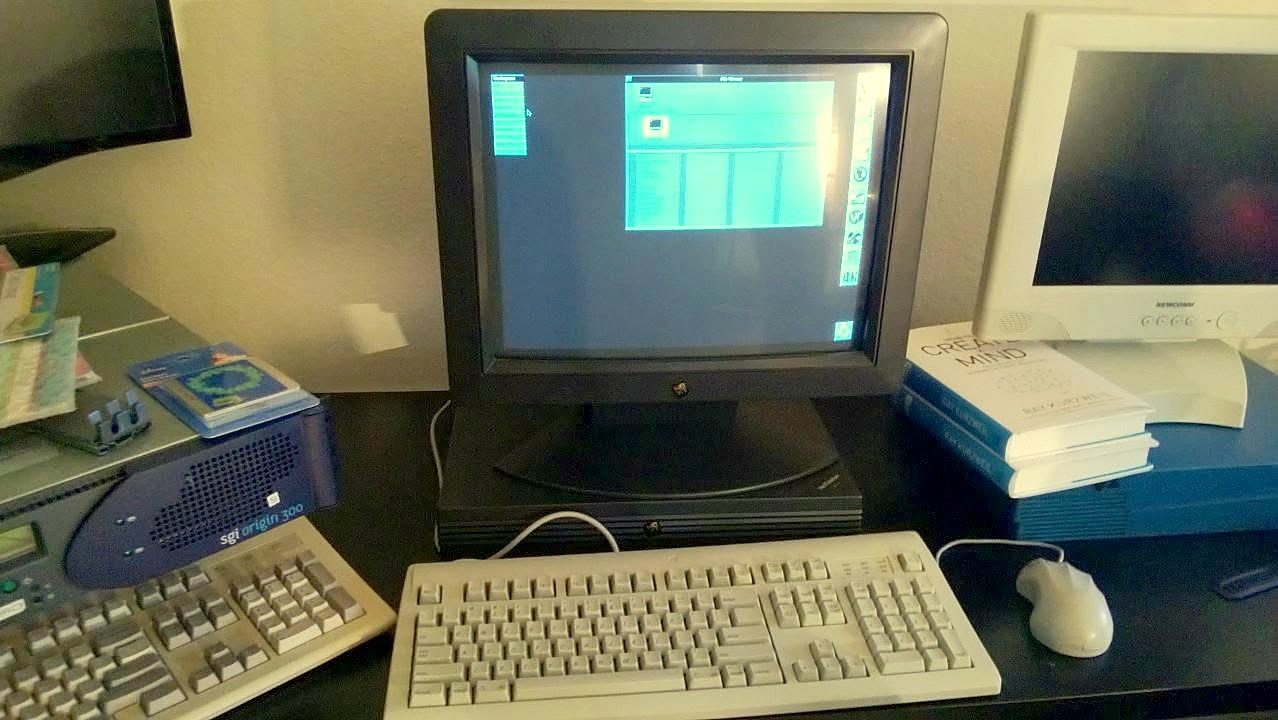

Photographs of the NeXTstation held here, and the operating system it booted.
Technical record
NeXTstation
| Introduced | 1990 |
|---|---|
| Processor | Motorola 68040 at 25 MHz; Turbo at 33 MHz |
| Signal processor | Motorola 56001 DSP |
| Memory | 8 MB to 32 MB; Turbo to 128 MB |
| Display | MegaPixel monochrome 1120 × 832, or Color at 16-bit |
| Operating system | NeXTSTEP |
Architecture
The same system as the cube in a flat case at about half the price, which is what put NeXTSTEP on university desks in any number. Two bits per pixel of grey is an odd specification until you see it: the display was calibrated so that the greys matched what a PostScript printer would produce, and the screen and the page were driven by the same imaging model.
Record & provenance
The NeXTstation placed the computer beneath a separate display. Its operating environment combined a graphical interface with Unix facilities.
Reference: ATX-OBJ-123-IMG-5189
Source: collection inventory, photographs, and notes accompanying Serious Machines (Amir Husain, 2024).
